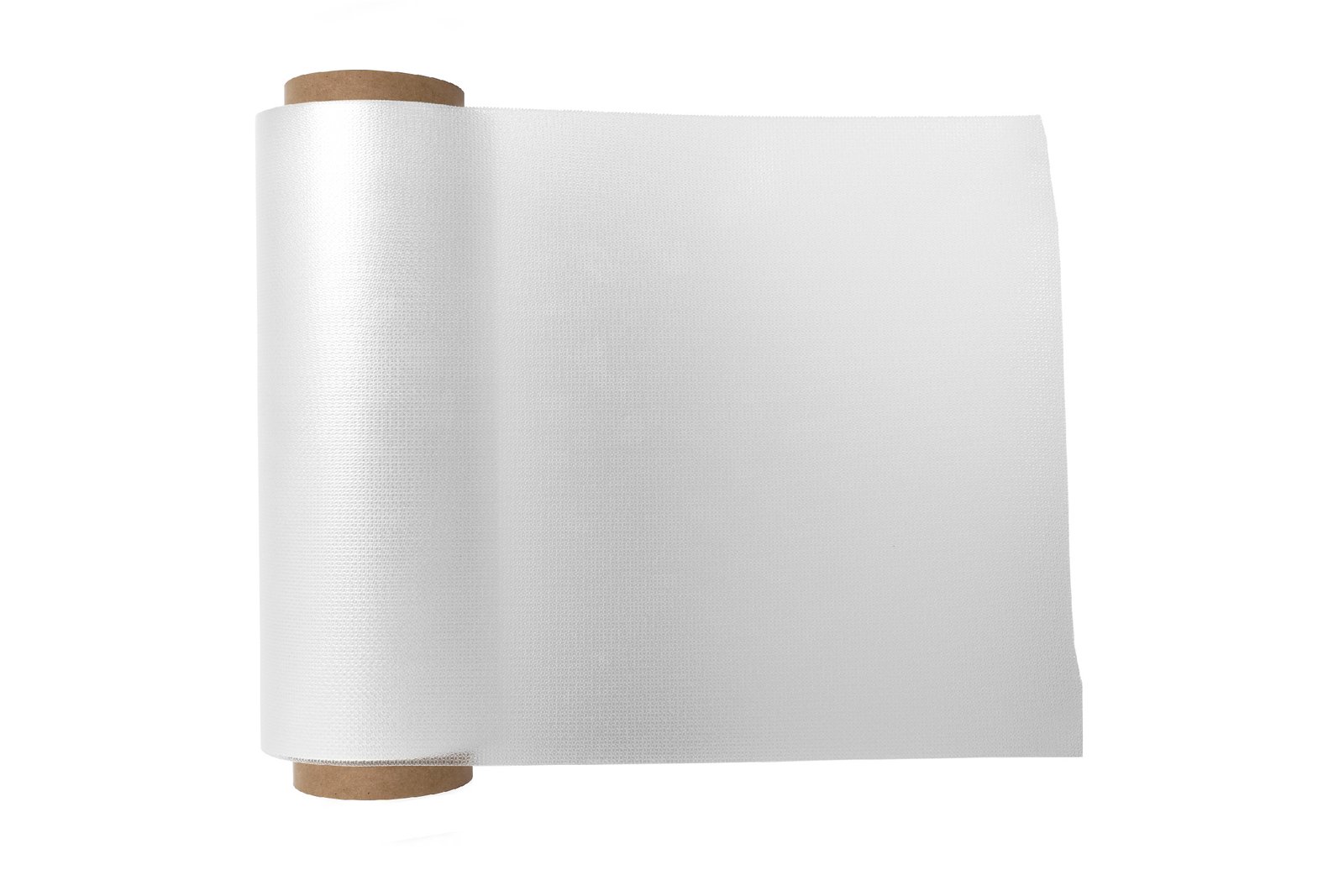

POE film

It is a cross-linked composite polyolefin photovoltaic packaging material made of polyolefin copolymer resin adding various necessary additives in accordance with a certain proportion. It has excellent water vapor barrier properties, can effectively bond glass, backplane and other materials for a long time, protect and fix solar cells, excellent electrical insulation properties, resistance to humidity, heat and ultraviolet aging properties, and can also protect and fix solar cells. Stable long-term anti-PID performance.

Description

Item Test method Unit Data
Tensile strength(after crosslinking) GB/T 13022-91 Mpa ≥6
Elongation (after crosslinking) % ≥400
Thickness tolerance GB/T 6672-2001 mm 0.4~0.8
Peel strength with glass ASTM D903 N/cm ≥70
Peel strength with TPT N/cm ≥40
Theral shrinkage ASTM 1204 MD% ≤4
TD% ≤2
Cross-linking rate ASTM D2765 % ≥70
Volume resistance GB 1410-89 Ω.cm ≥1.0×10¹⁵
Light transmittance(after curing)
(280-380nm)
GB/T2410-2008 % ≤80
Light transmittance(after curing)
(380nm~1100nm)
GB/T2410-2008 % ≥90
Yellowing index
(60kWh/m2  )
GB/T 29848 ΔYI ≤5
Damp-heat aging
(DH1000h)
GB/T 29848 ΔYI ≤5
