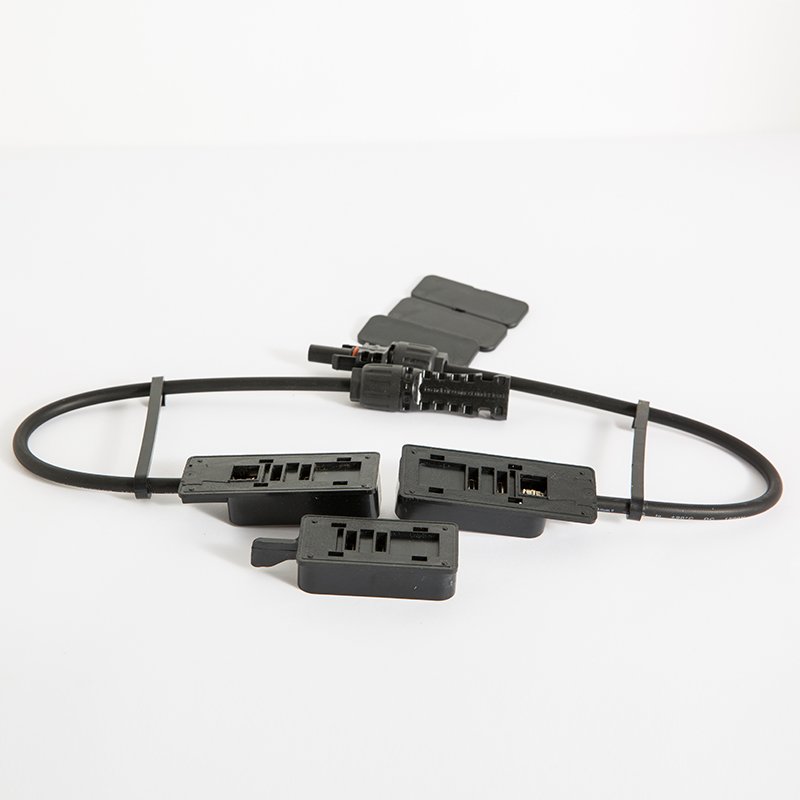

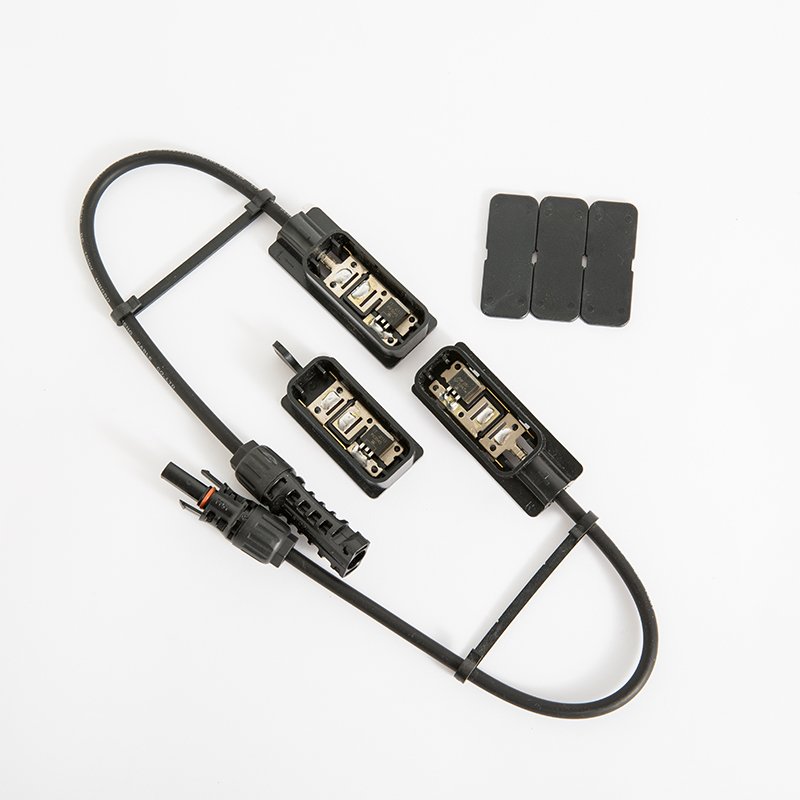

Junction box

An important guardian in solar photovoltaic systems, the wires specifically designed to connect and protect photovoltaic panels are a key component in ensuring the long-term and efficient operation of your solar system. With powerful waterproof and dustproof function, adapt to a variety of outdoor environments, to ensure safety.

Description

Technical parameters
Rated voltage: 1500VDC
Rated current: 30A
Ambient temperature: -40~+85℃
contact resistance ≤3mΩ
Pollution degree: class A
Degree of protection: IP68
Max. working voltage: 1500V
Connecting capacity: 12AiG/1x4mm2
copper strip size: 4.0~8.0mm(w)x0.2~0.6mm(h)
Termination and connection
1、Crimped -type terminals for external flexible PV cable
2、Diode and welding method of internal metal terminal
3、Bus and internal mental terminals using welding method
